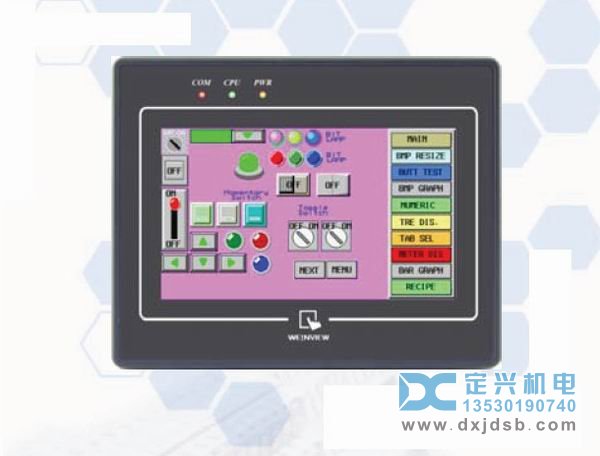

MT6050i台湾维纶触摸屏

MT6050i台湾维纶触摸屏详细说明资料:
规格说明
􀂀 外壳材质: 工业塑料
􀂀 显示器: 4.3" 480x272 65,536 色TFT LCD
􀂀 处理器: 32Bit RISC 400MHz
􀂀 内存(DRAM): 64 MB
􀂀 储存空间: 128 MB (用户程序: 16MB, 资料存储: 48MB)
􀂀 通讯界面: Com1: RS-232/RS-485 2w/4w,
1 USB 2.0 high speed device
􀂀 电源输入: 24±20%VDC,250mA@24VDC
􀂀 外形尺寸(W x H x D): 128 x 102 x 38mm
􀂀 重量: 约0.3kg
􀂀 使用软件: EB8000 V2.0.0 或更新版本软件
Pin Designations
Pin assignment of the 9 Pin, Male, SUB-D
Com1[RS-232],Com1[RS-485 2w/4w]

Pin#   Symbol    Com1[RS485]      Com1[RS485]      Com1[RS232]
                                   4 wire                   2 wire
1            Rx-                Rx-                      Data-
2            Rx+               Rx+                     Data+
3            Tx-                 Tx-
4            Tx+                Tx+
5            GND
6            TxD                                                                          Transmit
7
8
9            RxD                                                                              Receive



Ordering Information
8 MT6050i:
4.3" TFT LCD HMI, 128MB flash memory/64MB DDR2 RAM on board.
8 RZCMT6100:
MT6000/8000 i series download cable / Mini USB to USB 2.0 100 cm
8 RP0005050:
4.3" Protective Sheet
